Application

Counter Balance Truck,Sightseeing Vehicle,Aerial Work Platform,Agricultural Machinery.

Features

1. The series has diverse specifications with 350-450A output available for systems under voltages of 48V-80V.

2. Products are designed according to EN 13849-1:2015standard.

3. Supports both Serial and CAN communication.

4. Rich kinds of peripheral connections:

1. Seven small power outputs with maximum current up to 3A;

2. Two throttle inputs;

3. Eight digital inputs;

4. One 0-10V analog voltage output;

5. One isolated pulse output.

5. Supports various encoder type optionally:

1. A/B incremental encoder;

2. A/B/I absolute encoder;

3. Sin/cos encode;

4. Rotary Variable Differential Transformer.

6. Supports FOC control of ACIM/IPM(PMSM)/BLDC motors.

7. Supports ACIM motor parameter recognition and IPMSM/BLDCM motor position encoder zero calibration.

8. Supports three-loop control of position, speed (including speed loop control for pumps), and torque.

9. The unique variable load condition speed robust control and low-speed smoothing control technology provide customers with excellent vehicle control experiences.

Safety and Reliability

1. the dual-processor architecture is based on functional safety standards to ensure the highest possible level of functional safety performance.

2. Fail-safe power supply component by using isolated transformer.

3. Over-voltage cutback, thermal cutback, short-circuit protection and other safety features ensure the safety of controller outputs.

4. Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.

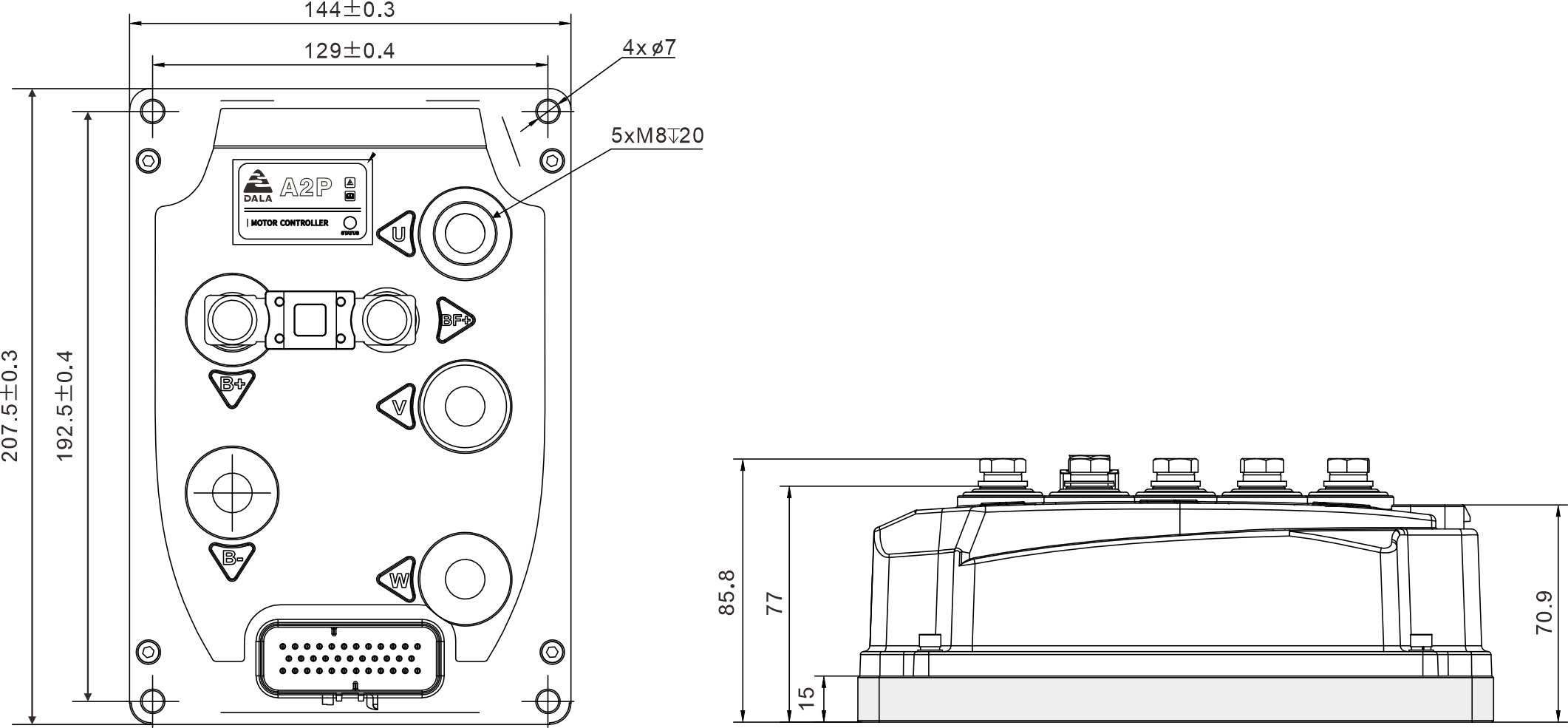

size
